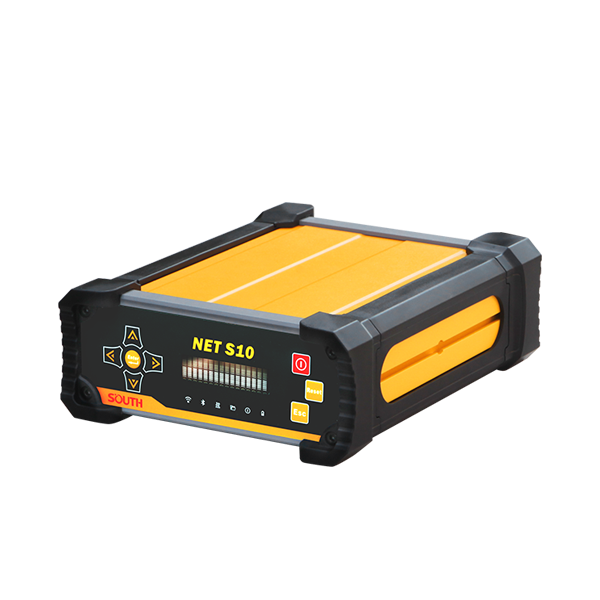

NET S10

    NET S10 is the latest design CORS receiver which supports all satellites constellations and integrated GPRS, WIFI, Radio, Bluetooth, Ethernet.

Model: NET S10

Download:

NET S10 Brochure

Features

• With High-precision GNSS board, it supports 4 satellite constellations signal

• Equipped with Cortex-A5 processor and Linux system, it brings faster computing speed and higher stablility.

• Adopting the SM2+SM4 Encryption algorithm, the security from data logging, storage to transferring can be seamlessly Guaranteed.

• A 3-level authority (super administrator, auditor, administrator) management architeture firmly ensures the data safety.

• Up to 10000 System logs record every operations. Misoperation can be traced easily.

• Rugged alluminium body resists collision, scratch, drop, press, etc.

• Rich indicating lights on front panel facilitate the configuration for receiver without the need of computer or mobile phone.

• WIFI and Bluetooth make receiver's configuration very easy.

• In case of internet failure, inbuilt Radio can make the receiver continue to work and delivery differential correction data to Rover.

• Multi format data recording (STH, RINEX2.x, RINEX3.x, BINEX).

• Inbuilt 10000mAh Li-ion battery provides upto 20 hours work duration.

• 64G internal memory+external storage (up to 1T) automatic circular storage.

• 10MHz external frequency input, 1 PPS output, 1 event input, Met/Tilt sensor input.


S10-4

Specification

GNSS Signal Channels 1598, 336 (optional)
GPS L1C/A, L2E(L2P), L2C, L5
BDS B1,B2,B3
GLONASS L1C/A, L2P, L2C/A, L2P
GALILEO E1, E5A, E5B, B5AltBOC, E6
SBAS WASS, MSAS, EGNOS and GAGAN
NavIC(IRNSS) Depends on the installing board
Intelligent and dynamic high sensitivity positioning technology to adapt rough working environment and longer working range
Initialization time <45 s (cold start)
Reliability >99.9%
Accuracyc Autonomous H: 3 m, V: 5 m(1 sigma, PDOP< 3)
Differential GPS H: 25cm+1ppm, V: 50+1 ppm
Long observation static H: 2.5mm+0.1ppm, V: 5mm+0.4ppm
Static and fast static H: 3mm+0.5ppm, V: 5mm+0.5ppm
Realtime kinematic H: 8mm+1ppm, V:15mm+1ppm
Data Save/
Output		 Internal memory 64G(support 1TB), auto cycling save
Removable storage Support external removable storage upto 1 T
Position update rate 0.05Hz,0.1Hz,0.2Hz,1Hz,2Hz,5Hz,10Hz,20Hz,50Hz (depends on installation option)
Differential data output RTCM2.x,RTCM3.x,CMR
Navigation data output ASCII: NMEA-0183 GSV,AVR,RMC,HDT,VGK,VHD,ROT,GGK,GGA,GSA,ZDA,VTG,
PJT,PJK,BPQ,GLL,GRS,GBS,Binary
Static data format STH,Rinex2.x,Rinex3.x,Binex
Data retrieval Data download by HTTP, FTP, pen drive copy
Concurrent data logging 8 independent logging
Communication Ethernet Supports TCP/IP data stream, ntrip server, client, caster, HTTP, FTP server and FTP push
Serial port Support multi independent data streams,navigation data, observation data, differential correction data
Bluetooth Bluetooth 2.1+EDR, 2.4GHz
WIFI 2.4GHz, IEEE 802.11b/g/n, supports hotspot and client mode
Radio Selectable(1W/2W/3W)
Phone network GSM,GPRS,LTE,UMTS,HADPA,3G,4G
Security Authority level 3 Level(Super administrator, Auditor, administrator)
System log Log records up to 10000 for all the operations done with system
Password authentication Allows multi-characters combination for password and multi authentications
Encryption algorithm Advanced encryption algorithm, SM2+SM4 combination
Digital certificate Digital signature to authorize different level of configuring receiver
System security Inbuilt firewall, auto detect melicious attack. Dual system and configuration parameters backup
Electric External power supply 9-36V DC input with over-voltage protection. 3 DC input ports
Internal battery Inbuilt 10000mAh li-ion battery supports continous work more than 20 hours. Auto charge inbuilt battery when external DC power is supplied
Power 4.6W

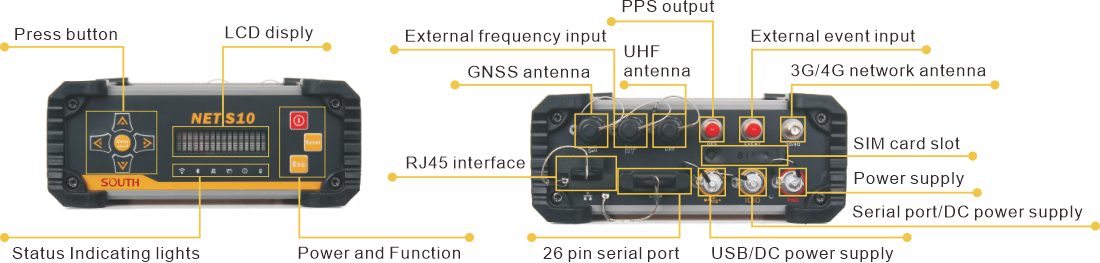

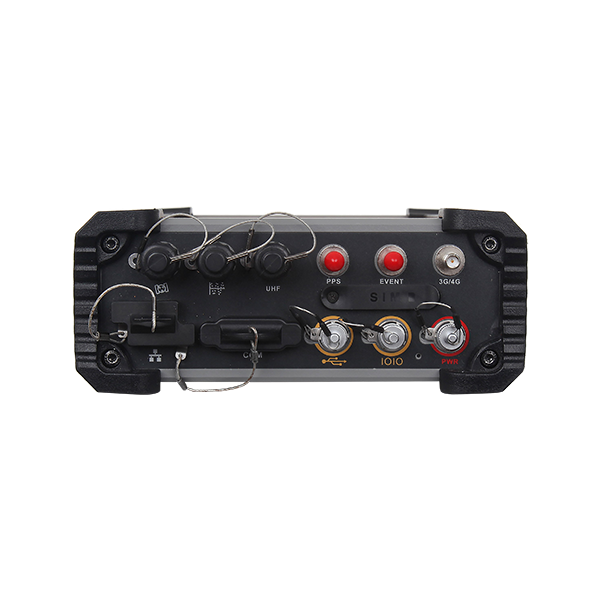

Device Interface Front panel indicating light: Bluetooth, differential correction, WIFI, data logging, power, battery status
Rj45: 1
Rs232: 2, support meteorology data, tilt sensor data and other sensor data
USB port: 2, USB host, USB device
External DC supply: 3
PPS output interface: 1; Event maker input interface: 1
External frequency scale port: 1
GNSS antenna port: 1
UHF antenna port: 1
SIM card slot: 1
GPRS antenna: 1
TF card slot: 1
Physical Size 216×178×72 mm
Weight 2.25 Kg
Shock and drop Rugged alluminium shell, survive a 2 m dop, MIL-STD 810F
Water/dust proof IP68
Environmental Working temperature -40℃ to 75℃
Storage temperature -45℃ to 85℃
Non-condensing humidity 100%

Note: all information above is subject to change without any prior notice.
