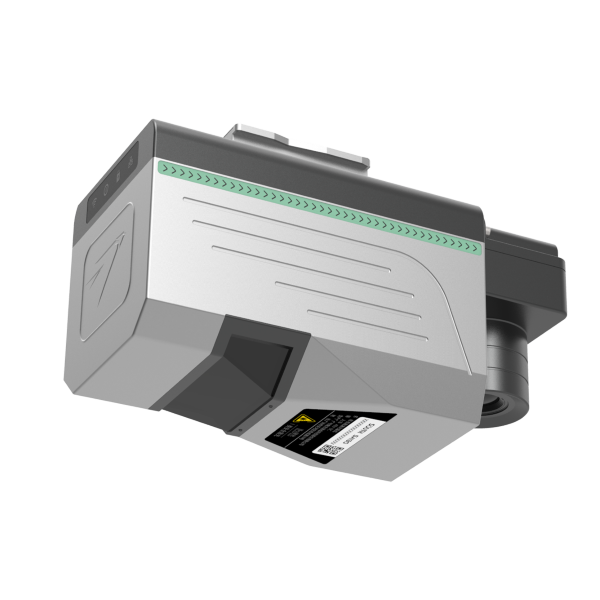

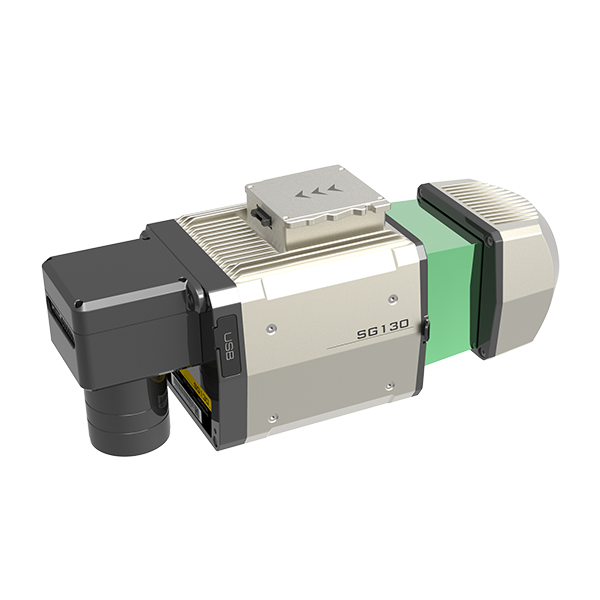

SG130

    SG130 is a multi-platform LiDAR system that combines high-resolution laser scanning and precise positional data to collect geo-referenced point cloud, which is particularly designed for geospatial survey scanning from air to ground.

Model: SG130

Download:

SG130 Brochure

Features

SG130 is a new generation of multi-platform LiDAR launched by South Surveying & Mapping. It has a smaller volume and lighter weight. With a measurement range of 900 meters, it can easily handle large-scale mapping tasks in complex scenarios. The cable-free design and integrated slider design allow for quick switching between multiple platforms such as unmanned aerial vehicles and vehicles.



Advantages


SG130 2

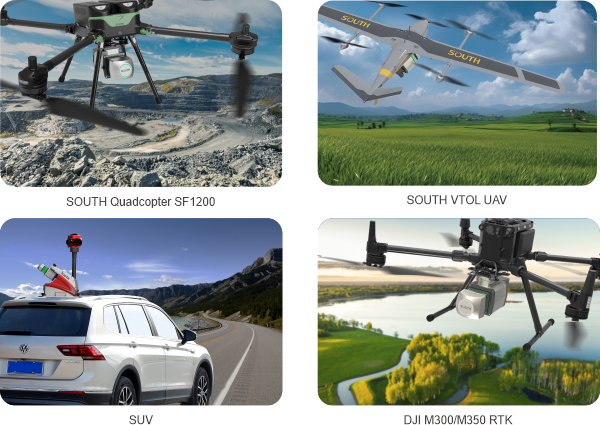

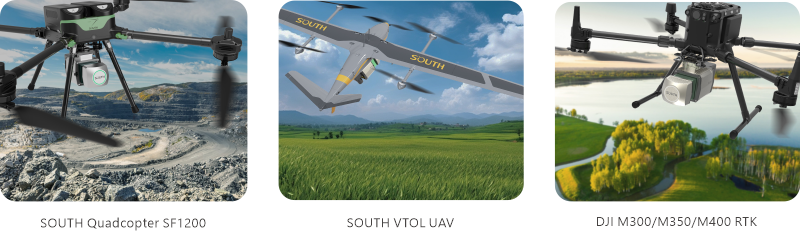

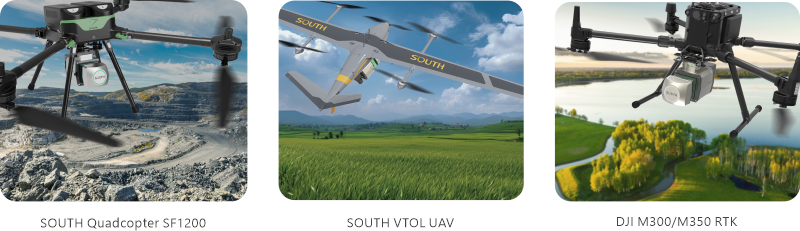

Platform


SG130 3

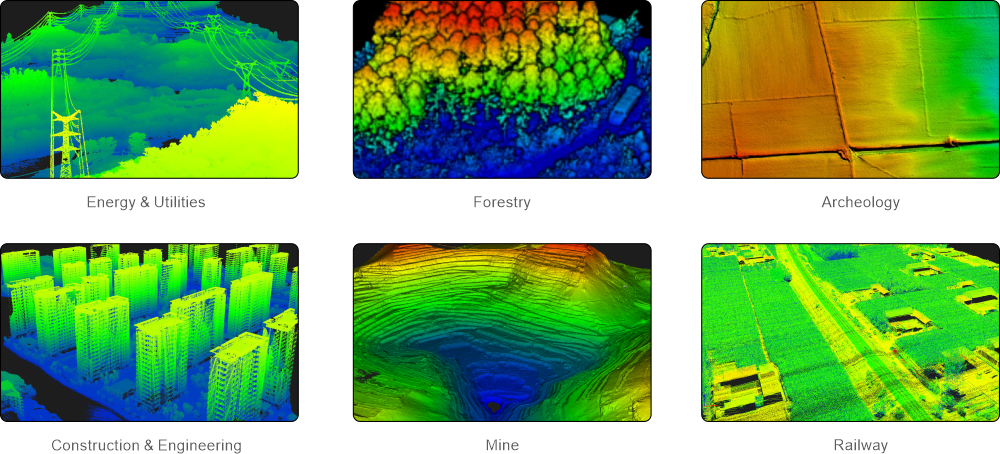

Applications

SG130 4

Specification

Scanner Performance Laser Pulse Repetition Rate (PRR) 600kHz
400kHz
300kHz
Max.Measuring Range@ρ> 20% *1 250
350
450
Max.Measuring Range@ρ> 80% *1 300
450
600
Typ. flying height 120m
200m
250m
Measurement rate max.800,000 pts/sec
Scanning FOV up to 360° *2
Max. Number of return pulses Max. 12
Measuring Range, natural targetsρ> 80% 900m
Measuring accuracy *3 15 mm (single)/ 10 mm (repeat)
Laser safety class Class 1 (lEC 60825-1:2014) eye-safe
Laser wavelength 1550nm
IMU & GNSS (Optional) *5 IMU Accuracy 0.01° Roll/ Pitch 0.02° Heading
0.006° Roll/ Pitch 0.019° Heading
IMU update rate 600HZ
500HZ
Position Accuracy 0.02m horizontal 0.04m vertical
0.01m horizontal 0.02m vertical
General Absolute accuracy ±5cm (H/V) *4
Storage 256 G Flash Drive
Dimensions 234mm x 112mm x 120mm (without camera)
Weight 2kg
Working temperature -20°~ +55°
IP rating IP64
Power consumption 40W
RGB Camera (Optional) *5 Resolution 26MP
45MP
Focal length 16mm
18mm
Sensor size 23.5*15.6mm
36*24 mm(8192*5460)
Pixel size 3.76um
4.4um
FOV 73°
90°
200 meters high resolution 4.7cm
4.9cm

*1 Typical values for average conditions. *2 Selectable. Consider limitations when integrated in kinemtatic systems *3 Accuracy is the degree of conformity of a measured quantity to its actual (true) value. *4 According to SOUTH test condition :150 m AGL with 8m/s speed. *5 Camera/IMU model is selectable
