AcuteLas Series LiDAR SA130mini

Model: SA130mini

Download:

SA130mini Brochure

Features
Specification

Features

● Ultra-high Integration: Integrates multiple sensors in one; only 1.3kg.

● Ultra-high Precision: 1535nm survey-grade LiDAR (1200m range), paired with a high- precision integrated

● Intelligent Operation: One-click takeoff & automated field data collection; one-click indoor processing.

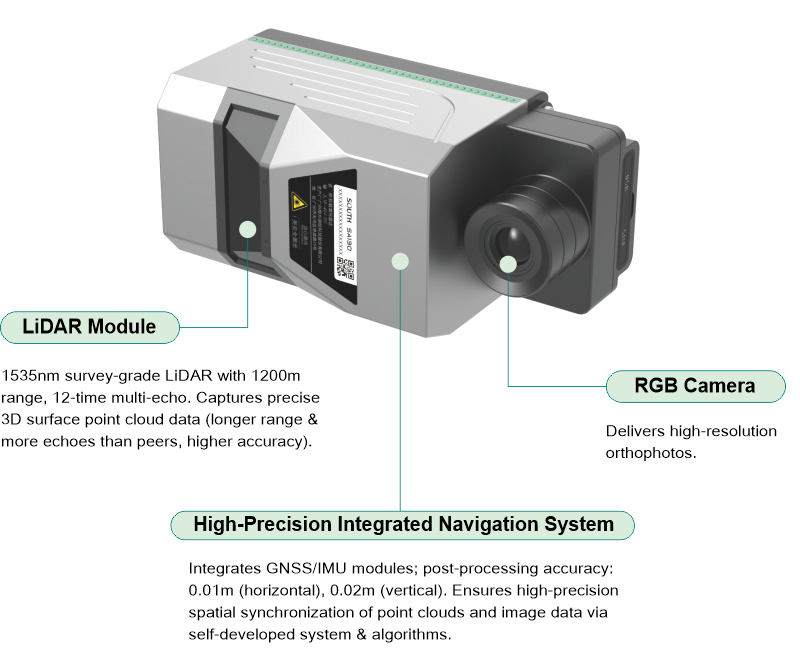

SA130mini 2

Specification

General	Weight	1.3kg
	Absolute accuracy	5cm@300m
	Dimensions	180X116.5X87.2mm
	IP rating	IP64
	Power	40W
LiDAR	Maximum measuring range	1200m
	Measuring accuracy	15mm/5mm@150m
	15mm/5mm@150m	255 lines/sec
	Scanning FOV	100°
	Number of Returns	12
	Laser Safety Classification	CLASS I
RGB Camera	Resolution	45MP/26MP
	Focal length	18mm/16mm
	Sensor size	36X24mm/23.5X15.6mm
	FOV	90°/73°
	200 meters resolution	4.9cm/4.7cm
IMU update rate	IMU update rate	500Hz
	IMU Accuracy	0.006 Roll/ Pitch 0.019 Heading
	Position Accuracy	0.01m horizontal 0.02m vertical

155
